TCP: client, server, and protocol

The TcpListener, TcpClient, and NetworkStream classes

For TCP, .NET provides more convenient wrapper classes over Socket (https://learn.microsoft.com/dotnet/fundamentals/networking/sockets/tcp-classes):

• TcpListener – the server: Start() performs Bind and Listen, AcceptTcpClientAsync() accepts a client, Stop() stops listening;
• TcpClient – a connection: ConnectAsync(host, port) connects by name or address, GetStream() returns the stream, and the Client property gives access to the underlying Socket;
• NetworkStream – a stream (Stream) over a socket: ReadAsync, WriteAsync, ReadExactlyAsync, and other familiar stream methods.

The stream can be "wrapped" in the StreamReader and StreamWriter classes to exchange lines of text. Text is transferred as bytes, so both sides must use the same encoding – UTF-8. Two details are easy to miss:

• StreamWriter buffers data by default; without AutoFlush = true or a call to FlushAsync the line never reaches the network, and both programs end up waiting for each other;
• new StreamWriter(stream, Encoding.UTF8) sends a BOM at the start of writing – three bytes EF BB BF that end up at the beginning of the peer's first line. A new UTF8Encoding(false) object writes UTF-8 without a BOM.

The NewLine = "\n" property makes the line separator the same on all operating systems (on Windows the default is "\r\n"); ReadLineAsync recognizes both variants.

Example: an echo server

The server accepts clients one at a time, reads lines, and returns each line with the Echo: prefix. The server listens only on the loopback address, so it can be reached only from this computer.

using System.Net;
using System.Net.Sockets;
using System.Text;

Console.OutputEncoding = Encoding.UTF8;

var listener = new TcpListener(IPAddress.Loopback, 5050);
listener.Start();
Console.WriteLine($"Echo server is listening on {listener.LocalEndpoint}");

while (true)
{
    // Wait for the next client (one at a time).
    using TcpClient client = await listener.AcceptTcpClientAsync();
    EndPoint? remote = client.Client.RemoteEndPoint;
    Console.WriteLine($"Client {remote} connected");

    NetworkStream stream = client.GetStream();
    var reader = new StreamReader(stream, Encoding.UTF8);
    var writer = new StreamWriter(stream, new UTF8Encoding(false))
    {
        AutoFlush = true,   // send every line immediately
        NewLine = "\n"
    };

    string? line;
    while ((line = await reader.ReadLineAsync()) != null)
    {
        Console.WriteLine($"{remote} → {line}");
        await writer.WriteLineAsync($"Echo: {line}");
    }
    Console.WriteLine($"Client {remote} disconnected");
}

The client sends the lines you type and prints the responses; an empty line ends the session:

using System.Net.Sockets;
using System.Text;

Console.OutputEncoding = Encoding.UTF8;

using var client = new TcpClient();
await client.ConnectAsync("127.0.0.1", 5050);
Console.WriteLine($"Connected to {client.Client.RemoteEndPoint}");

NetworkStream stream = client.GetStream();
var reader = new StreamReader(stream, Encoding.UTF8);
var writer = new StreamWriter(stream, new UTF8Encoding(false))
{
    AutoFlush = true,
    NewLine = "\n"
};

while (true)
{
    Console.Write("> ");
    string? text = Console.ReadLine();
    if (string.IsNullOrEmpty(text))
    {
        break;                      // empty line – exit
    }
    await writer.WriteLineAsync(text);
    string? answer = await reader.ReadLineAsync();
    if (answer is null)
    {
        Console.WriteLine("The server closed the connection");
        break;
    }
    Console.WriteLine(answer);
}

Run the server and the client in two Windows Terminal tabs (Fig. 9.4) or with dotnet run in two project folders. The client output (the lines you type follow >):

Connected to [::ffff:127.0.0.1]:5050
> Hello, server!
Echo: Hello, server!
> TCP transfers lines
Echo: TCP transfers lines
>

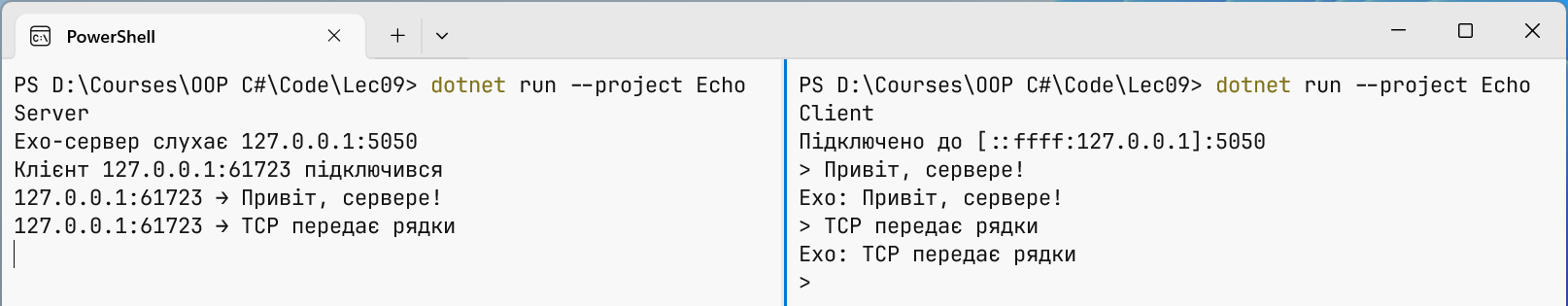

Fig. 9.4. Echo server and client in two Windows Terminal panes

The TcpClient() constructor creates an IPv6 socket in dual mode, which also handles IPv4, so the server address is shown as an IPv4 address mapped to IPv6: [::ffff:127.0.0.1]. The server logs lines such as 127.0.0.1:64104 → Hello, server!: the client port 64104 was assigned by the operating system. While the first client is connected, a second one waits in the Listen queue: the server loop serves clients one after another. How to serve clients simultaneously is covered later.

The listening address and Windows Firewall

The address the server listens on determines who can connect:

• IPAddress.Loopback (127.0.0.1) – only programs on this computer;
• IPAddress.Any (0.0.0.0) – all IPv4 network interfaces: the server is reachable on the local network;
• IPAddress.IPv6Any with listener.Server.DualMode = true – IPv4 and IPv6 at the same time.

A client connecting to the name localhost tries the address ::1 first. If the server listens only on 127.0.0.1, that attempt is refused, and on Windows the connection is established about 2 s later. That is why the example clients use "127.0.0.1".

Windows Firewall blocks incoming connections by default (https://learn.microsoft.com/windows/security/operating-system-security/network-security/windows-firewall/rules). When a program first starts listening on a network (non-loopback) interface and there is no rule for it, Windows shows the Windows Security Alert window (Fig. 9.5). A user with administrator rights can allow access on private (Private networks) or public networks. If you close the window with Cancel or do not have administrator rights, blocking rules are created, and clients from other computers cannot connect even though everything works on this computer. You can view and delete such rules in Windows Security → Firewall & network protection → Allow an app through firewall. The firewall does not inspect the loopback interface.

Screenshot

First run of ChatServer bound to 0.0.0.0: Windows Security Alert, Private networks checked

Fig. 9.5. The Windows Firewall prompt on the first server start

Tip

During development, listen on IPAddress.Loopback. Use IPAddress.Any when clients really run on other computers, and allow access only on private networks.

Message boundaries in a TCP stream

TCP transfers a byte stream, not messages: if a client sent 10 bytes twice, the server may receive 20 bytes in one ReadAsync call, or 3 and then 17. So the application protocol must define where each message ends. Two approaches are common (Fig. 9.6):

• a delimiter – the message ends with the \n character; this is how text protocols (SMTP, FTP, Redis) and ReadLineAsync work. The text itself must not contain the delimiter;
• a length prefix – the message length is sent before the message as a fixed number of bytes; the receiver reads exactly that many bytes. This is how binary data and files are transferred.

Fig. 9.6. Defining message boundaries in a TCP stream

Multi-byte numbers in network protocols are usually written in network byte order (big-endian): most significant byte first. x86 and ARM processors store numbers in the reverse order (little-endian), so for writing you use BinaryPrimitives.WriteInt32BigEndian, ReadInt64BigEndian, and other methods from the System.Buffers.Binary namespace (https://learn.microsoft.com/dotnet/api/system.buffers.binary.binaryprimitives). To read exactly n bytes, use ReadExactlyAsync: it repeats reading until the buffer is full, or throws EndOfStreamException if the connection closed earlier. Methods for sending and reading a length-prefixed message:

// Message: 4 length bytes (big-endian), then the UTF-8 bytes.
static async Task WriteMessageAsync(Stream stream, string text)
{
    byte[] data = Encoding.UTF8.GetBytes(text);
    byte[] prefix = new byte[4];
    BinaryPrimitives.WriteInt32BigEndian(prefix, data.Length);
    await stream.WriteAsync(prefix);
    await stream.WriteAsync(data);
}

static async Task<string> ReadMessageAsync(Stream stream)
{
    byte[] prefix = new byte[4];
    await stream.ReadExactlyAsync(prefix);   // exactly 4 bytes
    int length = BinaryPrimitives.ReadInt32BigEndian(prefix);
    if (length is < 0 or > 1_000_000)        // protection against 2 GB
    {
        throw new InvalidDataException($"length {length}");
    }
    byte[] data = new byte[length];
    await stream.ReadExactlyAsync(data);
    return Encoding.UTF8.GetString(data);
}

For the messages OK and HELLO, the bytes 00 00 00 02 4F 4B 00 00 00 05 48 45 4C 4C 4F go over the network (verified by printing with Convert.ToHexString). The receiver checks the length: without a limit, an attacker could send the number 2,000,000,000 and force the program to allocate 2 GB of memory. Files are transferred the same way: a header contains the file name and size, followed by the content bytes. The file name from the client is passed through Path.GetFileName so that a name like ..\..\x.exe cannot escape the server folder.

Structured data is convenient to transfer as JSON: one object is serialized into one line (the JSON Lines format), and message boundaries are again defined by \n (https://learn.microsoft.com/dotnet/standard/serialization/system-text-json/overview):

var options = new JsonSerializerOptions
{
    Encoder = JavaScriptEncoder.UnsafeRelaxedJsonEscaping
};
var message = new ChatMessage("Olena", "Hi!", 2);

// Sender: one JSON object – one line.
string json = JsonSerializer.Serialize(message, options);
await writer.WriteLineAsync(json);

// Receiver: line → object.
string? line = await reader.ReadLineAsync();
ChatMessage? received = line is null
    ? null : JsonSerializer.Deserialize<ChatMessage>(line);

record ChatMessage(string From, string Text, int Room);

The JSON line looks like {"From":"Olena","Text":"Hi!","Room":2}. Without the UnsafeRelaxedJsonEscaping encoder, the serializer writes non-ASCII characters (for example, Cyrillic letters) as \u041E… codes: this is valid JSON, but longer and unreadable.

An application protocol

When the client and the server are written by different people, the exchange rules must be described in a document – an application protocol. A protocol description contains:

• how messages are delimited: UTF-8 lines with \n, a length prefix, or JSON Lines;
• the client's commands and their arguments: ADD 2 3, QUIT;
• responses with status codes, as in the SMTP and HTTP protocols: 1xx – information, 2xx – success, 4xx – an error in the request, 5xx – a server error (Table 9.2);
• session states: which commands are allowed before login (HELLO, LOGIN) and after it;
• limits: the maximum line or file length, the number of connections, the idle timeout;
• the protocol version in the greeting (CALC/1.0), so that an old client and a new server can agree or refuse gracefully.

Table 9.2. Response codes of the CALC/1.0 teaching protocol

Code	Meaning	Example
100	the server is ready and reports the protocol version	100 CALC/1.0 ready
200	the command was executed	200 6.5
400	invalid command format	400 format: SUB number number
403	the command is not allowed in this session state	403 send HELLO CALC/1.0 first
404	unknown command	404 unknown command "SQRT"
413	the message is too large, the connection is closed	413 line longer than 100
505	the protocol version is not supported	505 only CALC/1.0 is supported

Numeric codes are convenient for programs, and the text after the code is for people. Numbers in the protocol use the invariant culture (CultureInfo.InvariantCulture): a server with Ukrainian settings and a client with English ones must understand 2.5 the same way. The full implementation of the CALC/1.0 protocol is given in the lab assignment.
